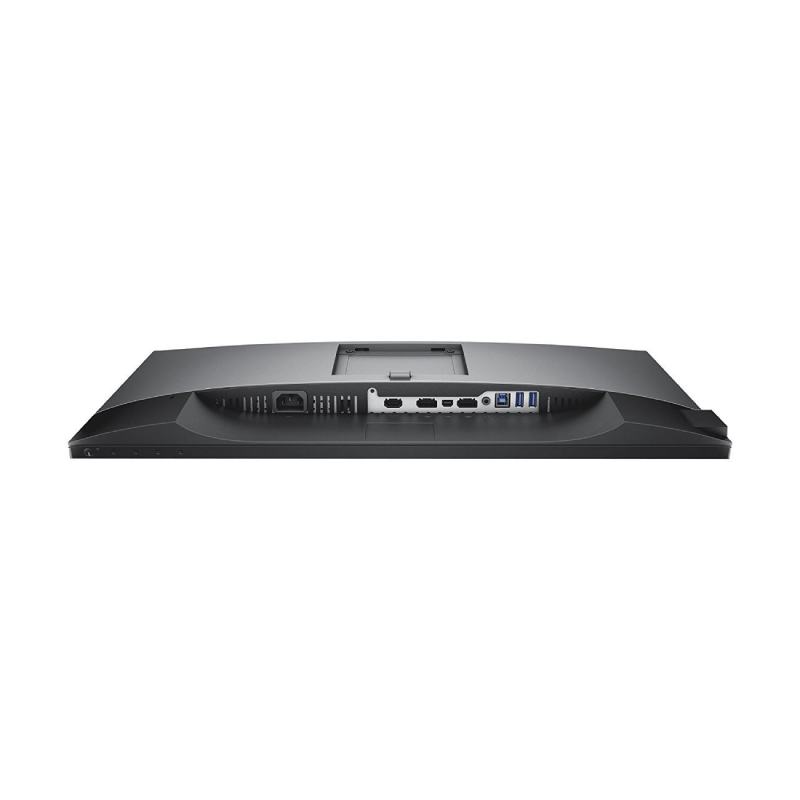

Dell U2417H 24″ Monitor

Description

Display

• Display diagonal: 60.5 cm (23.8″)
• Display resolution: 1920 x 1080 pixels
• HD type: Full HD
• Native aspect ratio: 16:9
• Display technology: LED
• Panel type: IPS
• Backlight type: W-LED
• Touchscreen: No
• Display brightness (typical): 250 cd/m²
• Response time: 8 ms
• Display surface: Matt
• Screen shape: Flat
• Supported graphics resolutions: 1920 x 1080 (HD 1080)
• Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Aspect ratio: 16:9
• Contrast ratio (typical): 1000:1
• Viewing angle, horizontal: 178°
• Viewing angle, vertical: 178°
• Display colors: 16.78 million colours
• Smart Response: 6 ms
• Pixel pitch: 0.2745 x 0.2745 mm
• Horizontal scan range: 30 – 83 kHz
• Vertical scan range: 50 – 75 Hz
• Viewable size, horizontal: 52.7 cm
• Viewable size, vertical: 29.6 cm
• Color gamut: 99%
• 3D compatibility: No

Multimedia

• Built-in speaker(s): No
• Built-in camera: No

Ports & interfaces

• Built-in USB hub: Yes
• USB hub version: 3.2 Gen 1 (3.1 Gen 1)
• Number of upstream ports: 1
• USB Type-A downstream ports quantity: 4
• DVI port: No
• HDMI ports quantity: 1
• DisplayPorts quantity: 2
• Mini DisplayPorts quantity: 1
• Audio output: Yes
• DC-in jack: Yes
• AC (power) in: Yes
• Mobile High-Definition Link (MHL): Yes

Ergonomics

• VESA mounting: Yes
• VESA mounting interfaces: 100 x 100 mm
• Cable lock slot: Yes
• Height adjustment: Yes
• Pivot: Yes
• Pivot angle: 90 – 90°
• Swivelling: Yes
• Swivel angle range: -45 – 45°
• Tiltable: Yes
• Tilt angle range: -5 – 21°

Power

• Power consumption (typical): 19 W
• Power consumption (standby): 0.5 W
• Power consumption (max): 68 W
• Power consumption (off): 0.3 W
• Power consumption (PowerSave): 15.6 W
• AC input voltage: 100 – 240 V
• AC input frequency: 50 – 60 Hz
• Input operating current: 1.6 A
• Annual energy consumption: 26 kWh

Operational conditions

• Operating temperature (T-T): 0 – 40 °C
• Storage temperature (T-T): -20 – 60 °C
• Operating relative humidity (H-H): 10 – 80%
• Storage humidity: 5 – 90%
• Operating altitude: 0 – 5000 m
• Storage altitude: 0 – 12192 m

Weight & dimensions

• Width (with stand): 188 mm
• Depth (with stand): 537.6 mm
• Height (with stand): 485.3 mm
